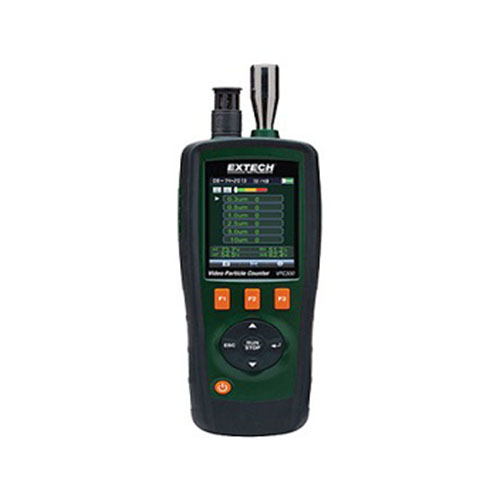

Extech VPC300

Description

Video particle Counter with built in Camera

Measure up to 6 Channels of Particle Sizes plus Air Temperature and Relative Humidity

The VPC300 is a Video Particle Counter with built-in Camera. Measures up to 6 channels of particle sizes plus air temperature and relative humidity. Used for capturing videos and photos that are stored onto internal memory or a micros card. Use the included software to generate reports with videos, photos and data points. Complete with NIST-traceable calibration certificate, Universal AC Adapter /Charger with multiple plugs, USB cable, Pc software, Tripod, Filter, 7.4V NiMH battery and a hard protective case.

With the VPC300 you can:

1. Simultaneously measure and display 6 channels of particle sizes (down to 0.3µm), Air Temperature, Humidity, Dew Point and Wet Bulb
2. 2.8″ TFT Color LCD display
3. Built-in 320×240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory
4. Store 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video
5. Selectable sample time, count data, and programmable delay
6. Max, Min, DIF, AVG record, Date/time setup controls, Auto Power Off
7. Mini-USB port connection
8. Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and hard case

Specifications

1. Particle Size Channels:  0.3, 0.5, 1.0, 2.5, 5.0, 10µm
2. Flow Rate:  0.1ft3 (2.83L/min) controlled by internal pump
3. Count Mode:  Cumulative, Differential, Concentration
4. Counting Efficiency:  50% @ 0.3µm; 100% for particles>0.45
5. Coincidence Loss:  5% @ 2,000,000 particles per ft3
6. Air Temperature:  -14 to 140ºF (-25 to 60ºC); Accuracy:±2ºF/1ºC
7. Relative Humidity:  0 to 100%RH; Accuracy:±3%RH (40% to 60%RH)
8. Dew Point/ Wet Bulb:  32 to 122ºF (0 to 50ºC)
9. Dimensions/Weight:  9.4 x 3 x 2.2″ (240 x 75 x 57mm)/1.26lbs (570g)
